Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Transmission Type: Manual

Condition: New

Emission Standard: EURO 5

Fuel Type: Diesel

Tank Volume: 8000L

è½¦èº«å°ºå¯¸: 12000X2500X3500mm

Horsepower: 231kw

Gross Vehicle Weight: 25000

Truck brand: DFA

Drive type: 4X2

Tank material: mild steel

Shut off: primay and secondary

Rear door: hydraulically operate

Suction boom: included

Reverse discharge: included

Air flow: 1400m3/h

Remote control: included

Feature: Suction boom(Romote control)

Βασικές πληροφορίες

Πληρωμής & Αποστολής Όροι

Packaging Details: ro-ro ship

Supply Ability: 50 Unit/Units per Month

Περιγραφή προϊόντων

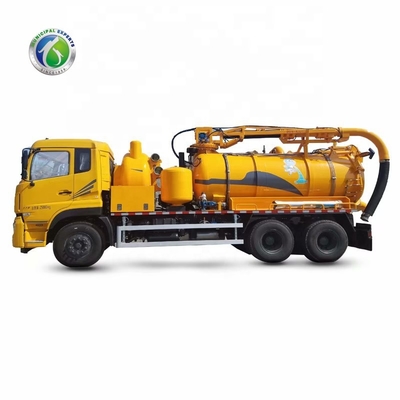

Vacuum Excavators Vacuum Jetting Truck Toilet Sewage Tank Sewage Truck Sino Diesel Tank Truck

Product Description

What is the main Application of the Combi Truck and Characteristics?

The suction vehicle is suitable for suction from the various o the sewer man-hole,drain wells and sediment wells and transporting,Meanwhile,it is not only used for suction,transportation sewage,oil stain and waste water at large-scale factories and mines,it also can be used as silt remover for cleaning rills and rivers.

Main Technical Parameter Show Blow:

	Item	Parameters
Vacuum System	Vacuum pump	Liquid ring vacuum pump, provides high air flow along with high vacuum levels for removing materials below liquid surfaces.
	Air flow rate	2800m3/h
	Rotate speed	Max 1000rpm
	Pump cooling	Cooling Water tank in stainless steel 1,000L, mounted just behind the drivers cab
	Telescopic suction boom	Remote controlled, steel material. Swivel in both the vertical and horizontal plane. 270°horizontal rotation, 6m working radius, vertical lift up to 5.5m above ground and 1350mm extension
	Suction hose	5", 10m, can be lengthened, with non-return valves

	Shape	Cylindrical shaped tank with U-sectional external stiffening rings.
Sludge tank	Material	Mild steel
	Capacity	Sludge tank 10,000L
	Shell thickness	5mm
	Dish thickness	5mm
	Tank inner filter	Separate the sucked wastewater and solid, which protects key parts like pump, valve and hose
	Working pressure	-0.95bar
	Tipping cylinder	Front single acting tipping cylinder with safety support, provided for 40° liquid removal.
	Liquid level indicator	Glass indicator at the rear of tank.
	Primary shut off	SS float ball prevents overfilling sludge tank.
	Secondary shut off	Once the tank’s full, ultrasonic level indicator is activated and vacuum pump is closed automatically, no need to shut it down from the control box
	Full opening rear lid	Hydraulically opening and locking

Product Photo

Click it for more Information!!!

Company Information

Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...

Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…

Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.

Why choose us?

What's our factory Professional advantage?

1. Use Split shaft PTO(Transfer case),which is common in Euro and America.Comparing to sandwish PTO used by other Chinese supplier,our method doesn't need to break down transmission box and don't change the transmission accuracy.

2.Jetting water pressure id pneumatically controlled.Avoid the sudden high pressure which may happen if you choose three-way value supplied by other Chinese factory.Our pneumatic safety valve is from Italy together with the water pump.

3.Use Liquid ring vacuum pump.Comparing to air cooling vane pump,air flow up to 2800m3/h,-0.95bar vacuum level and long continuous work time due to water cooling type.

4.Reverse discharge capability discharges water and leaves sludge,reduces round trip times between drainage well and dumping site.

5.Jetting nozzle works with linear high pressure water flow,makes the most effective use the water pressure.

6.Multiple safety protections,includ ultrasonic liquid level indicator,float ball,pressure safety value at the top of tank and vacuum air lines.

Where is need to Use our vehicle?

To unblock and clean sewer. To vacuum suck liquid waste and clean drainage well. Dry material vacuum suction truck suck and transport powder, coal in power plant, dust or cement.

Our Services

We factory promises the following services:

1.Before sale----

Technical exchanges with customers,demonstrations,explore individual solutions.

2.Insale---

Fully implement the best customized solutions,enhance process control and optimization.

3.After-sale---

Free training,tracking guide,24 hours feedback service program.

Long and Reliable Cooperation Starts from This Moment You Click

FAQ

Q1:Are you a factoty or trading company?

A1:We are professional manufacturer and seller with the experience of over 30 years.

Q2:What about the quality?

A2:Quality is priority .All the products will be 100% check before shipment .We check our products one by one before we pack and ship to make sure they are all what you ordered,to make sure the quantity and in good condition.

Q3:How can I get lower price ?

A3:We are factory manufacturer , we will provide competitive price for you , pls contact our salesman, you will get more discount.

Q4:How is your truck meeting our country standard?

A4:Firstly,we have 30 years exporting experiecne,OEM is avaliable for our customers.

Secondly,All our trucks will be made according to different countries standard, and accepted been tested and confirmed by customers before loading. we will provide valid chassis number and documents which can help register the truck on road of buyer's countries..

Q5:How long does the shipping will take ?

A5:For production,We will send the goods within 30 days after 30% deposit has been confirmed.

Q6: What's the payment terms?

A6:We accept T/T, Paypal, L/C ,Secure payment, alipay and so on ...

Q7:Could you accept OEM order?

A7:We have professional designers who can design your logo and offer best solution & styles for your OEM products.

Q8:Do you have experience to export Vacuum Truck oversea?which countries did you export before?

A8:Dear ,we have lots of experiences to export to many countries before,eg.
Australia,Southeast Asia,Middle East,Africa,Russia,South America,Korea,Japan and so on.
