Full Automatic Electric Compactor Truck Hotels Garbage Collection And Electric Dump Truck In China

1 set
MOQ
Full Automatic Electric Compactor Truck Hotels Garbage Collection And Electric Dump Truck In China
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Condition: New
Drive Wheel: 4X2
Type: electric garbage compactor truck
Transmission Type: Manual
Emission Standard: Euro 4
Fuel Type: Electric
Engine Capacity: 4200w
Size: 3450*1340*1975
Gross Vehicle Weight: 1100
Warranty: 1 Year
After-sales Service Provided: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Πιστοποίηση: CE, ETL, GS, RoHS
Product name: Electric garbage compactor truck
Box dump and back-up time: ≤12s
Max loading capacity: 1500kg
Turning radius: <5m
Max speed: 30km/h
Range: >80km
Battery: 72v/165Ah(optional)
Motor power: 4200w
Bin tipper speed: 10s
Rear Garbage tank: 2050*1260*1130mm
Βασικές πληροφορίες
Πιστοποίηση: CE, ETL, GS, RoHS
Πληρωμής & Αποστολής Όροι
Packaging Details: Packed in pe film or according to customer special request.
Supply Ability: 200 Set/Sets per Month
Περιγραφή προϊόντων
Product Description

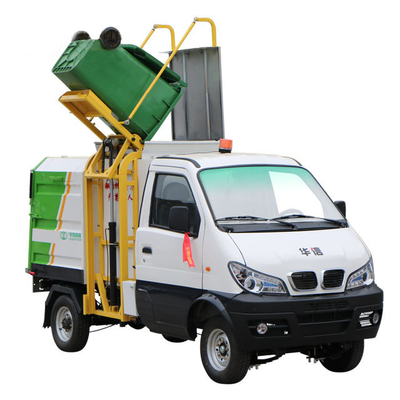

FT4401 Four wheels electric garbage recycling transport vehicle mainly used for the collection of household garbage,industrial and commercial garbage.widely used in municipal,environmental sanitation,construction,mine and chemical industry. with auto-dumping function can be used as supporting for large-middle sized refuse transport station.

Main Features

1) Automobile chassis,enduring and  anti-rust;frame structure design withstand great impact,front crash structure,protect the operator safety.

2) Non independent suspension system,more robust and and stable.

3) All closed cab with luxury dashboard; soft interior.

4) Equipped with large capacity batteries,green energy and environment protection.

5) American curtis controller, can be programmed online and setting according to customer different requirement.

6) 4-wheel hydraulic braking system.ensure the safety of driver.

7) Operation cab installed with Radio,MP3,USB interface,SD card,and speaker,providing a comfortable environment for driver.

Technical Parameter
Key Components
Item
Description
Controller
Curtis controller, imported from USA directly
Motor
Rated power 4200w,AC motor
Battery
165Ah maintenance-free battery
Charger
72V/30A transfered smart charger
Performance
Item
Description
Passenger Capacity
2
Range (km)
≥80
Max .speed (km/h)
35
Box dump and back-up time(s)
≤12
Bin tipper time(s)
10
Min. turning radius (m)
5
Climbing ability(loaded)
20%
Max. loading weight (kg)
1500
Body and Frame
Item
Description
Frame & Chassis
Welded steel framework with sand blasting and painting
Body
High strength carbon steel
Windshield
Laminated glass with wiper
Roof supports
Steel
Seat
Reborn sponge with artificial leather, high back, with formed armrest
Rear garbage box
Steel material, with hydraulic lifting function, side cover and rear door with air-spring
Steering Location
LHD/RHD
Side rear view mirror
2pcs
Dimension
Item
Description
Overall dimensions (mm)
3780*1450*1975 (LxWxH)
Rear garbage box dimensions (mm)
2050*1260*1130 (LxWxH)
Min.ground clearance (mm)
170
Wheelbase (mm)
2470
Front wheel tread (mm)
1150
Rear wheel tread (mm)
1150
Electric System
Item
Description
Lights
Headlamp+brake & tail light+turn signals+hazard lights+ +reversing buzzer
Horn
Electric horn
Reverse buzzer
Electric
Combination switch
including switch for headlight, turning light, wiper and horn
DC/DC converter
72V/12V
Audio system
Radio+MP3+USB+SD+Speaker
Related Products

Electric Garbage Compactor


Garbage Transportation Truck


Side-dumping Garbage Truck


          Electric Garbage Tricycle

                 3-wheel Garbage Truck

                      Street Sweeper

Certifications
Working on Site
Packing & Delivery
Company Profile
ANHUI HUAXIN ELECTRIC TECHNOLOGY CO., LTD was founded in year 2007 (stock code:870774), is a leading manufacturer of electric sanitation vehicles, such as electric waste collection vehicle,electric garbage transport vehicle,electric high-pressure washing vehicle , electric road sweepers,electric fire fighting truck,electric patrol car, electric sightseeing car and various vehicles. We have 2 advanced product lines with the yearly production capacity of 30,000 vehicles. Now our products have been widely sold to more than 20 countries in the world.
HUAXIN also invests a lot to the production of mould making, jigs and checking moulds to ensure the precise of components, and the key components (Battery, Controller) imported from USA and Japan directly to ensure the performance of the vehicles. HUAXIN follows International Quality Standard to produce, control and inspect the electric vehicles. At present,our company passed the certification ISO9001-2008,ISO14001 and OHSAS18001 helth and safety certification,and CE.
We the commitment of "Green the World,Clean service", we are fully dedicated to providing people safe,economical and environmental friendly electric sanitation vehicles.
FAQ

Q1. Where is your factory located?

Our factory located in Hefei city which is the capital of Anhui province. Transport is very comvinient. just 2 and half hours from Shanghai by high speed train and only one hour by plane.

Q2. How many workers in your factory?

HUAXIN established in 2007year with 10 years experience and more than 200 hundred workers now.

Q3. What's the advantage of your company?

    1.The first host company which set the electric sanitation vehicle in China.

    2.The first engineering technology research center of electric sanitation vehicle.

   3.Full series products line,including electric garbage truck,electric garbage transport truck,high-pressure road washer,road sweeper,electric patrol vehicle,etc.

   4.Standarlized assembly line,each procedure must be strictly under requirement and all of the product has laser code to realized the quality traceability.

  5.Strictl testing,all of products must be under strict testing when leave factory.

Q4. Can you produce as per customer special requirement,such as customer brand?

Of cause, it's ok.
